CJ Cyclofilter

Home ShopNedermanCJ Cyclofilter
CJ Cyclofilter

CJ Cyclofilter

Combines the advatages of cyclone separation with the efficiency of a bag filter

Nederman´s CJ Cyclofilter baghouse dust collector maximizes the separation of dust from the airstream. The result is a reduced upward velocity and dust load, thus maximizing bag life. This low dust load greatly improves the efficiency of the filter, even in the toughest of applications, giving typical emission levels of less than 0.1mg/m³ with only approx. 50% of the filter area of an alternative chain filter.



Send a Quote Request
Categories: Nederman, Stationary Filters.
0
Share
  • Description
  • TECHNICAL DATA
  • DOWNLOAD

The Cyclofilter baghouse dust collector combines the advantages of cyclone separation with the efficiency of a bag filter. Available in positive or negative pressure configurations.

  • The dust collector can be design to large handles large waste volumes
  • Fitted explosion panels, certified under the ‘ATEX directive’
  • Reduces residual dust concentration to less than 0.1 Mg/m³(6.243 lbs/ft3)
  • Automatic ‘‘on demand’ pulse-jet cleaning of the filter bags
  • Allows for 24hr operation, even with very high dust concentrations
  • Monitored cleaning system requires very low compressed air consumption.
  • Cost effective and efficient
  • Virtually maintenance free due to lack of moving parts
  • Durable filter housing

TECHNICAL DATA

Application Dust, Granulate, Grit
Certifications CE, EX
Filter cleaning method Pulse jet
Filter efficiency (%) 99.9997
Installation Outdoor
Kst (bar*m/s) 200
Operating Temperature -4 to 104 F (-20 to 40 C)
Suitable for combustable dust Yes
Filter type Bag

DOWNLOAD

Download Leaflet – Click Here

Related products

View Details

FilterBox Twin

Nederman, Portable & Compact Units
3
View Details

FlexPAK 1000

Nederman, Portable & Compact Units
3
View Details

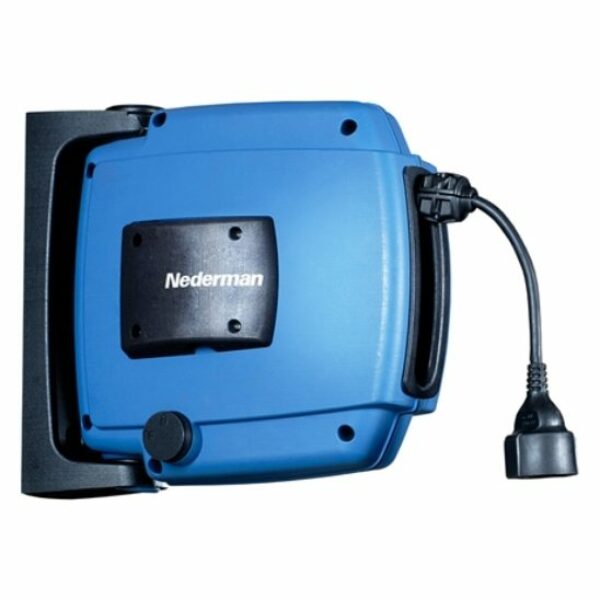

POWER CABLE REEL C30 FOR ELECTRICAL TOOLS
